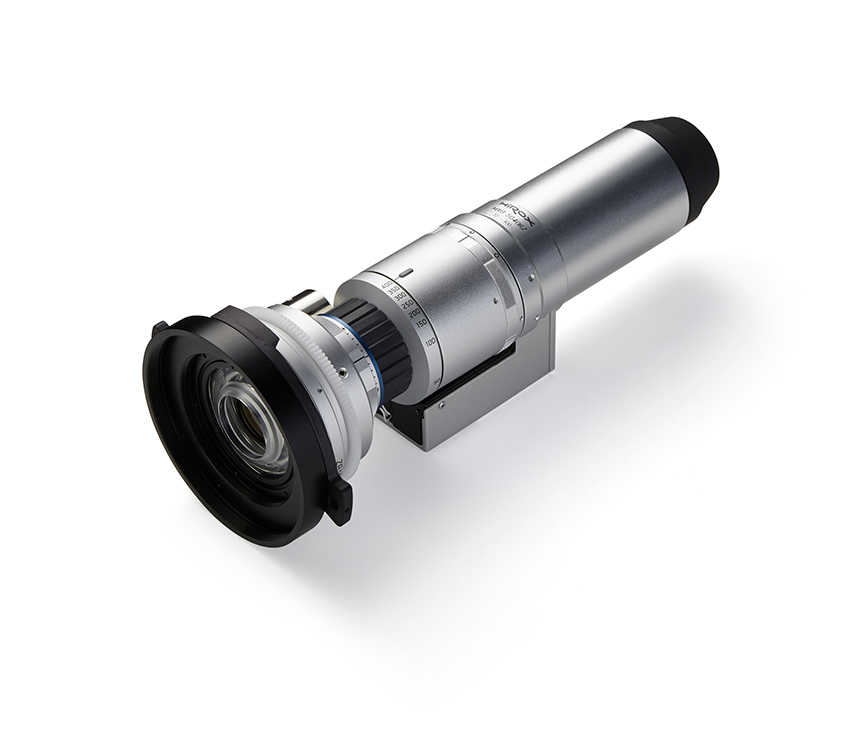

This universal lens can be equipped with a wide selection of optical adapters. Attaching the rotary head adapter allows 360 Degree revolution with the ability to inspect at multiple angles.
The various exclusive adapters snap-on, allowing one-touch replacement and a magnification range that expands observation from 20x-800x.
Adapter
Standard
Low Mag
High Mag
Magnification
50-400x
20-160x
100-800x
Working Distance
54mm
80mm
20mm
Horizontal View
6.1 - 0.78mm
15.4 - 2.0mm
3.05 - 0.39mm
Depth of Field
2.7 - 0.08mm
16.81 - 0.58mm
0.68 - 0.02mm
ACS Function
Yes
Yes
Yes
Adapters
Variable Angle 360° Rotary-Head Adapter Snap-on type, Hirox exclusivity! Lighting Method: Dark field vertical lighting Working Distance and adjustable viewing angle: 25mm (25°), 19mm (35°), 14mm (45°), 9mm (55°) Weight: 124g
Non Contact Adapter Included with the lens Lighting Method: Dark field vertical lighting Working Distance: 54mm Weight: 68g
Low Magnification (0,4x) Rotary-Head Adapter Snap-on type, 360° Inspection Low Magnification: 20x to 160x Lighting Method: Dark field vertical lighting Working Distance: 28.5 mm Angle: 45° Weight: 266g
High Magnification (2x) Rotary-Head Adapter Snap-on type, 360° Inspection High Magnification: 100x to 800x Lighting Method: Dark field vertical lighting Working Distance: 3.5mm Angle: 45° Weight: 173g
Variable Lighting Angle Adapter Snap-on type
Lighting Method: Variable angle lighting Working Distance: 6 to 21mm Angles: 30° to 65° Weight: 285g
High Magnification Variable Lighting Angle Adapter Snap-on type Magnification: 100x to 800x Lighting Method: Dark field vertical lighting Working Distance: 1.6mm Weight: 176g
High Magnification Adapter Snap-on type Magnification: 100x to 800x Lighting Method: Dark field vertical lighting Working Distance: 20mm Weight: 108g
Low Magnification Straight View Adapter Snap-on type 20x to 160x Lighting Method: Dark field vertical lighting Working Distance: 80 mm Weight: 180g
Polarizing Adapter (with filter slider) Snap-on type Lighting Method: Polarizing Filter Lighting Working Distance: 55mm Weight: 87g
Straight View Co-Axial Lighting Adapter Snap-on type Polished Side Inspection Lighting Method: Co-axial lighting Working Distance: 21mm Weight: 325g
Diffusing Adapter for 3D Rotary-Head Lighting Method: Diffuse Lighting Working distance: 25 to 9mm Weight: 2g
Diffusing Adapter for Straight View Can be screwed on the AD-5040HS, Anti-reflection Lighting Method: Diffuse Lighting Working Distance: 4mm Weight: 36g
Contact Adapter Can be screwed on the AD-5040HS Lighting Method: Dark field vertical lighting Working Distance: 0 – 1.5mm Weight: 100g
