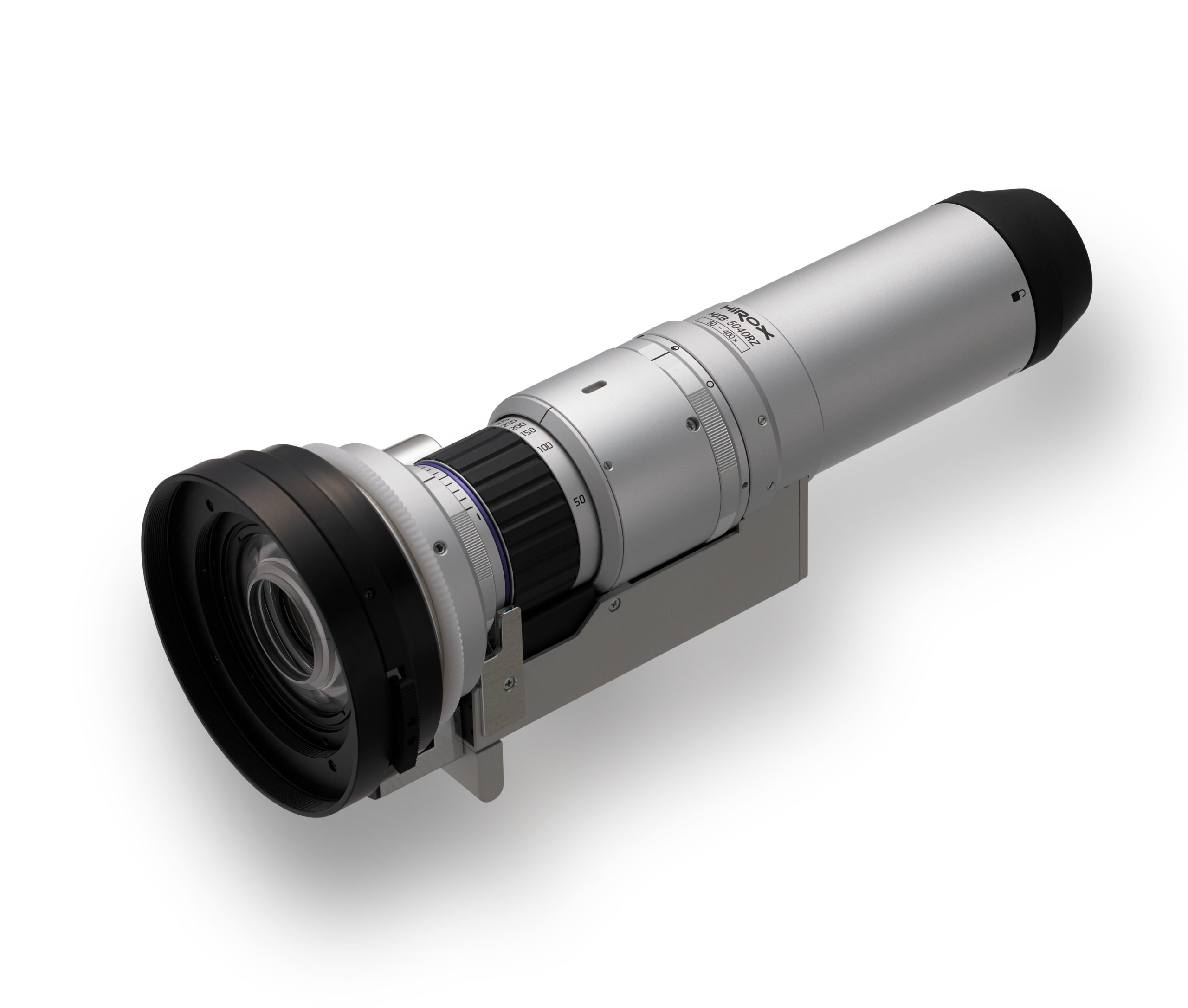

Middle-Range Motorized Zoom Lens

HR-5040(E)

50x up to 400x Magnification

Field-of-view from 6.1mm up to 0.78mm

Depth-of-field from 13.3mm up to 0.25mm

Available in both Motorized and Manual versions

This universal lens can be equipped with a wide selection of optical adapters.

Attaching the rotary head adapter allows 360 Degree revolution with the ability to inspect at multiple angles.

The various exclusive adapters snap on, allowing one-touch replacement and a magnification range that expands observation from 20x-800x.

AdapterStandardLow MagHigh Mag
Magnification50-400x20-160x100-800x
Working Distance54 mm80 mm20 mm
Horizontal View 6.1-0.78 mm15.4-2.0 mm3.05-0.39 mm
Depth of Field2.7-0.08 mm16.81-0.58 mm0.68-0.02 mm
ACS FunctionYesYesYes
MotorizationZoom / Rotary-Head

Adapters

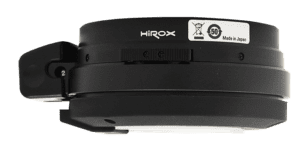

AC-5040RV

Variable Angle 360° Rotary Head Adapter Hirox Exclusivity!
Magnetic and Automatic Recognition
360° rotary inspection without contact or sample moving.
25 to 55 degree angle view
Lighting Method: Variable angle lighting

AC-5040H
Non Contact Adapter
Included with the lens
Magnetic and Automatic Recognition
Lighting Method: Dark field vertical lighting
Working Distance: 54 mm

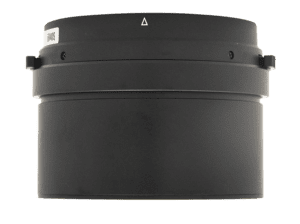

AC-5040S
Contact Adapter
Magnetic and Automatic Recognition
Lighting Method: Variable angle lighting
Working Distance: 0 mm

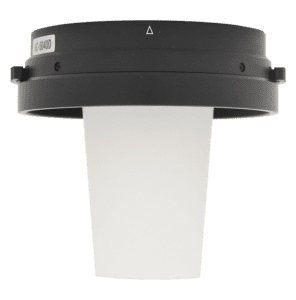

AC-5040D
Diffusing Adapter
Magnetic and Automatic Recognition
Lighting Method: Diffuse lighting

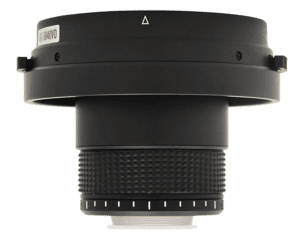

AC-5040VD
Variable Working Distance Diffusing Adapter
Magnetic and Automatic Recognition
Lighting Method: Variable Diffuse lighting

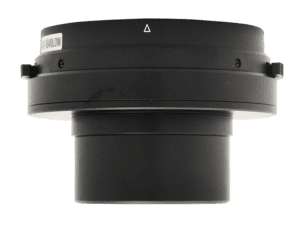

AC-5040LOW
Low Magnification (0,3x) Adapter
Magnetic and Automatic Recognition
Magnification: 20x to 160x
Lighting Method: Dark field vertical lighting
Working distance: 80 mm

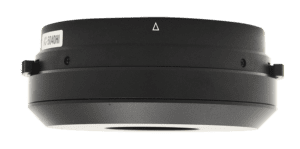

AC-5040HI
High Magnification (x2) Adapter
Magnetic and Automatic Recognition
Magnification: 100x to 800x
Lighting Method: Dark field vertical lighting
Working Distance: 20 mm

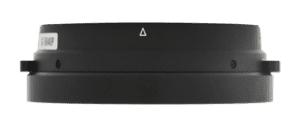

AC-5040P
Polarizing Adapter (with filter slider)
Magnetic and Automatic Recognition
Lighting Method: Polarizing Filter Lighting
Working Distance: 55 mm
