Stands

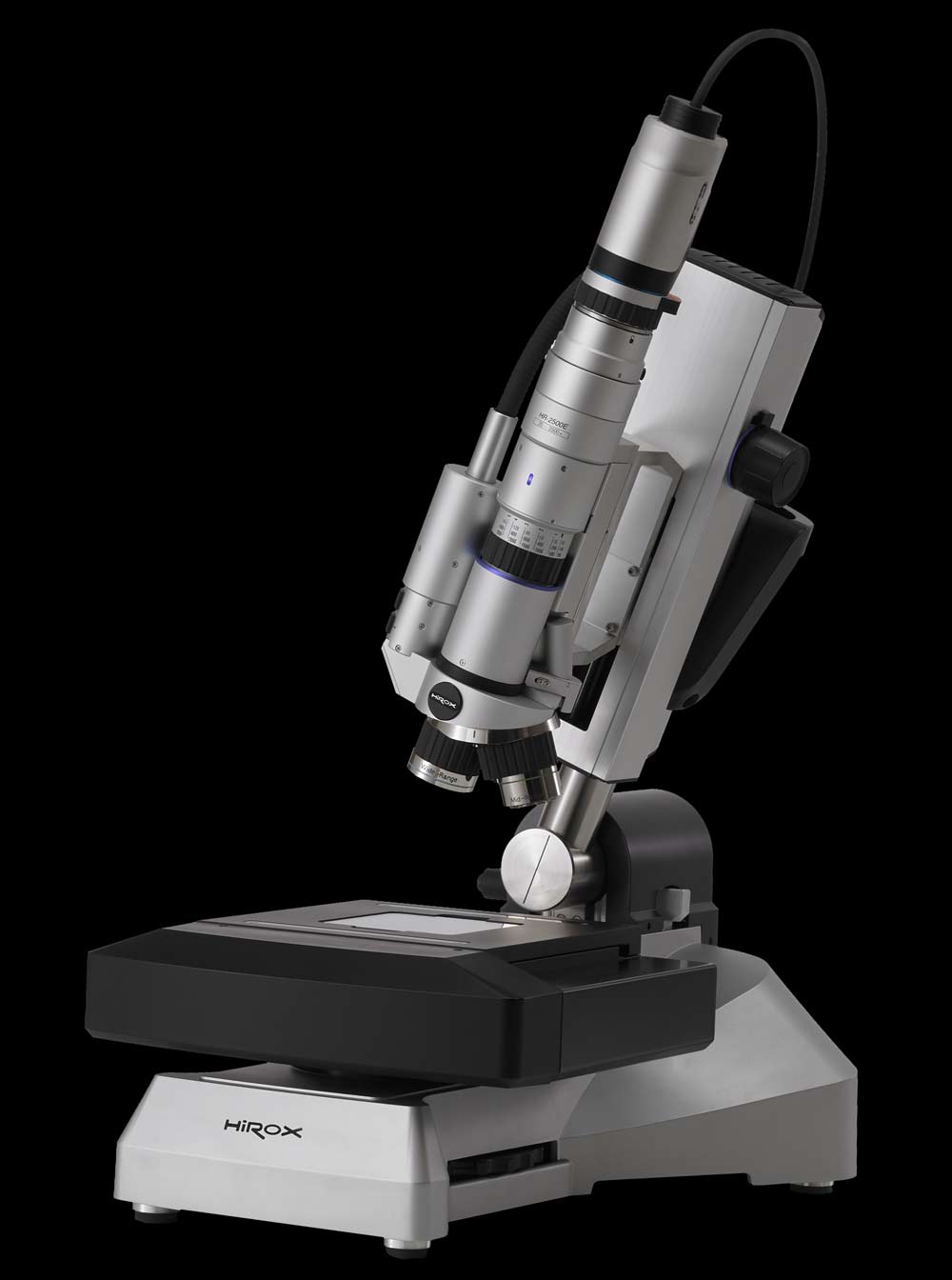

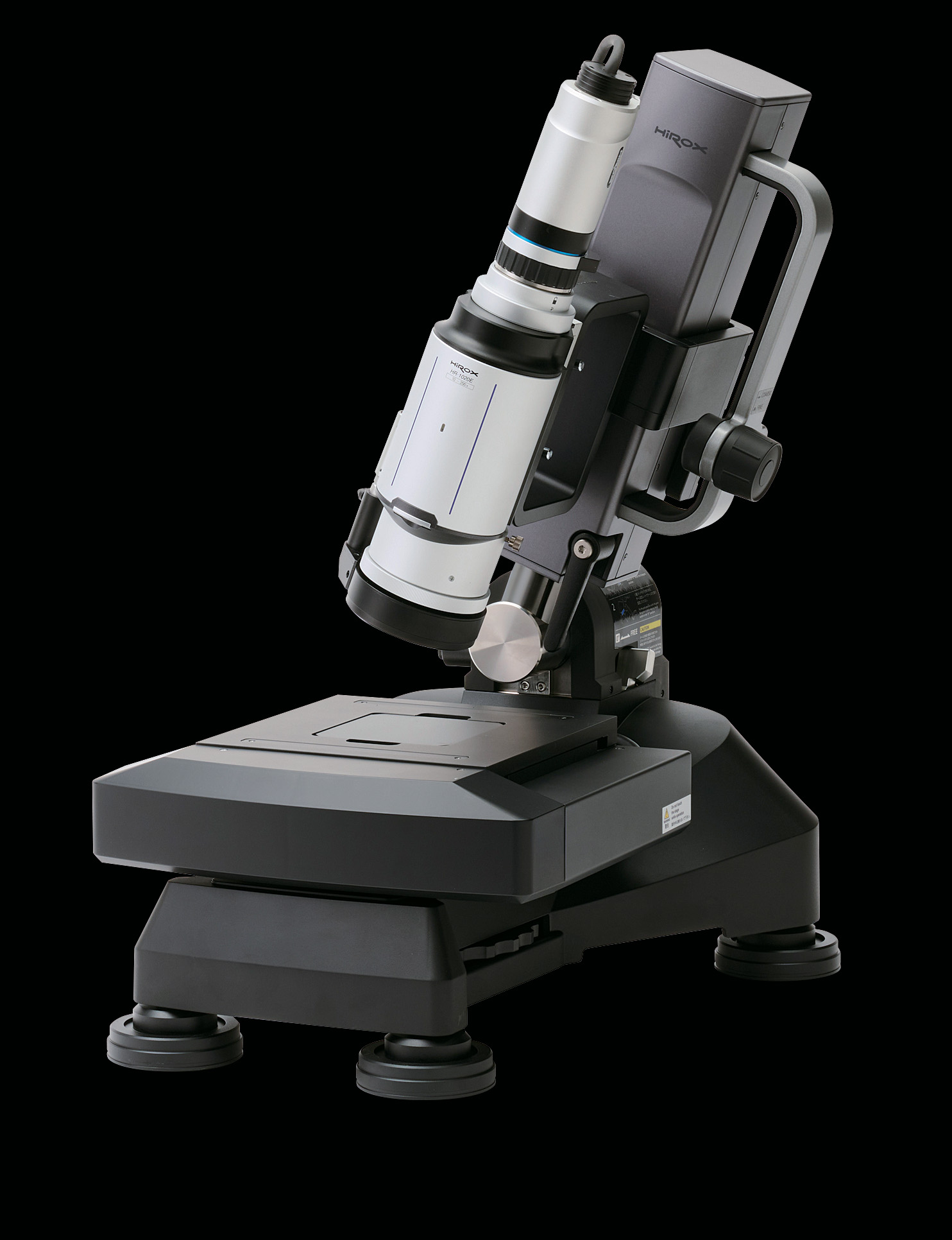

ST-AS | Motorized XYZ-Axis Free Angle Stand

Hirox created a completely new angle stand featuring multiple integrated sensors and a high precision 80 mm motorized Z movement, providing the highest level of accuracy for various applications.

The XY stage can be manual or motorized (50 x 50 mm or 100 x 100 mm) for automatic XYZ acquisition. The stand also integrates built-in transmitted illumination, controlled by the HRX-01 software, increasing the observations
capabilities, as well as antivibration feet for improved stability. A rotary plate can be added to spin the sample in any direction!

Thanks to various sensors – including height and angle – the ST-AS stand truly supports the users, offering intelligent & stress-free observation.

For a maximum ease-of-use, all 4 axes (X-Y-Z-R) can be controlled with the wireless 3D-mouse controller

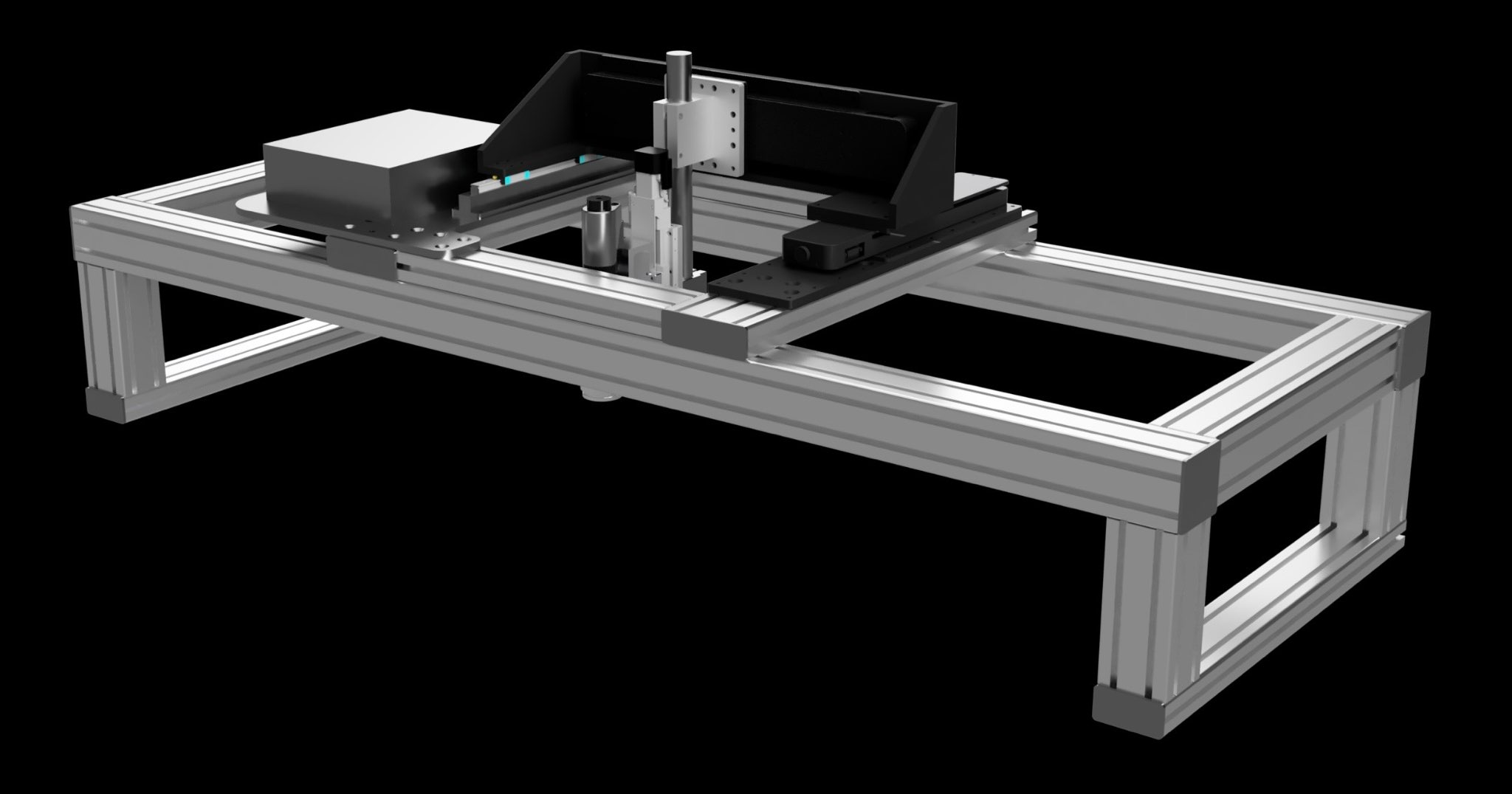

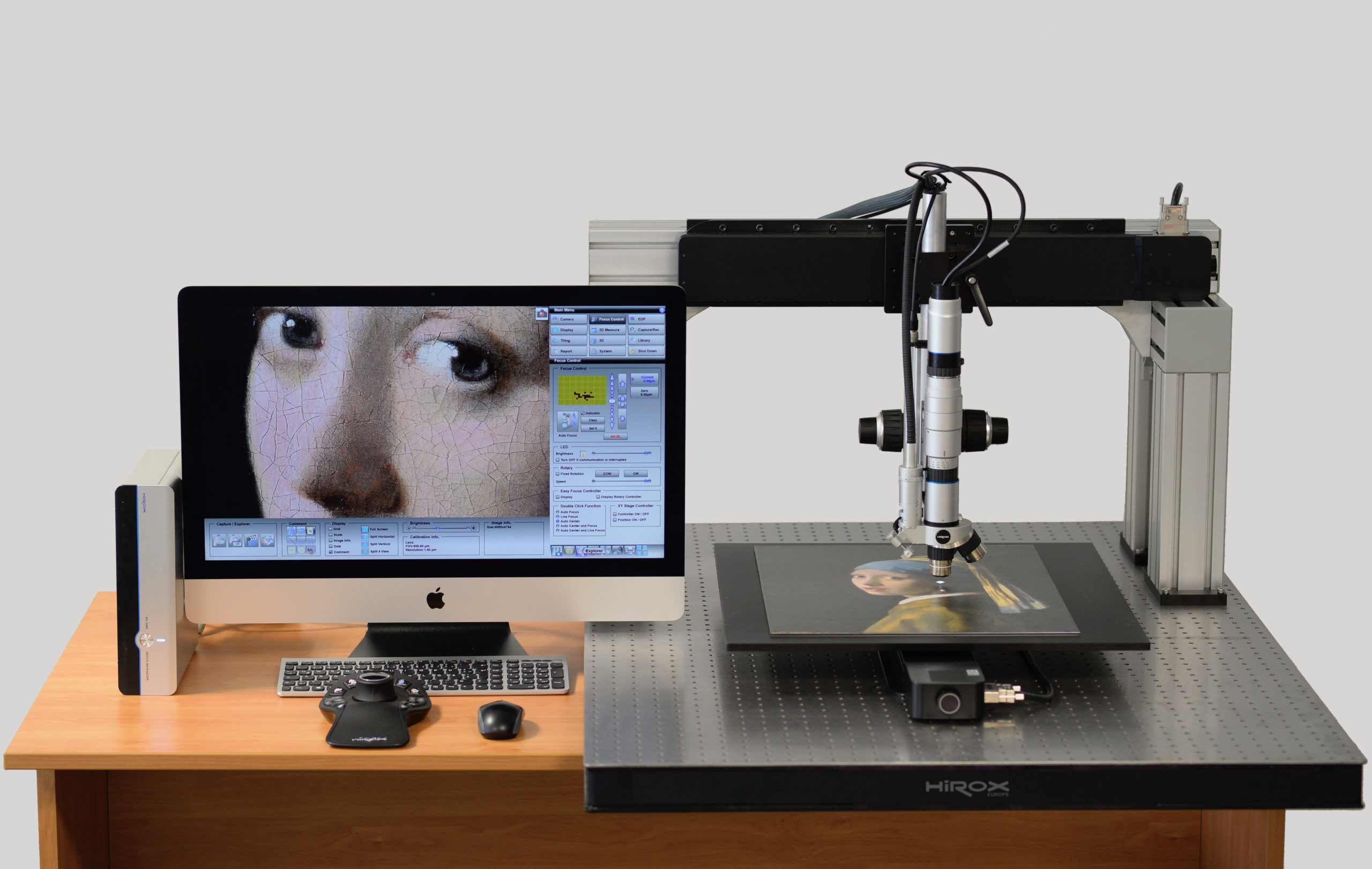

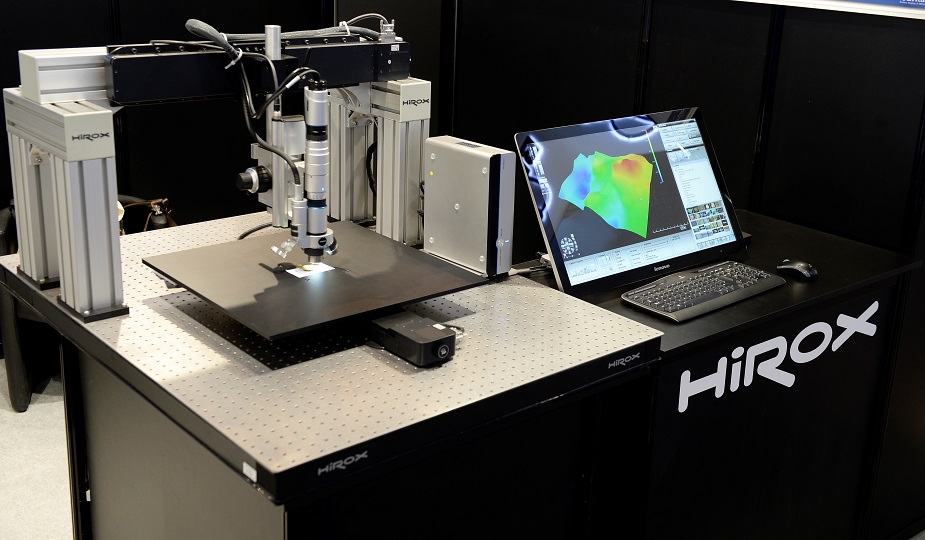

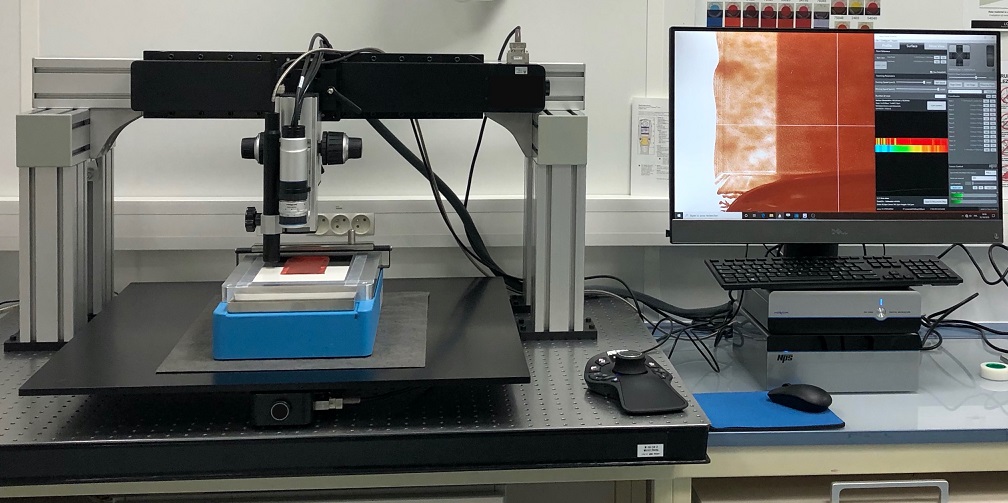

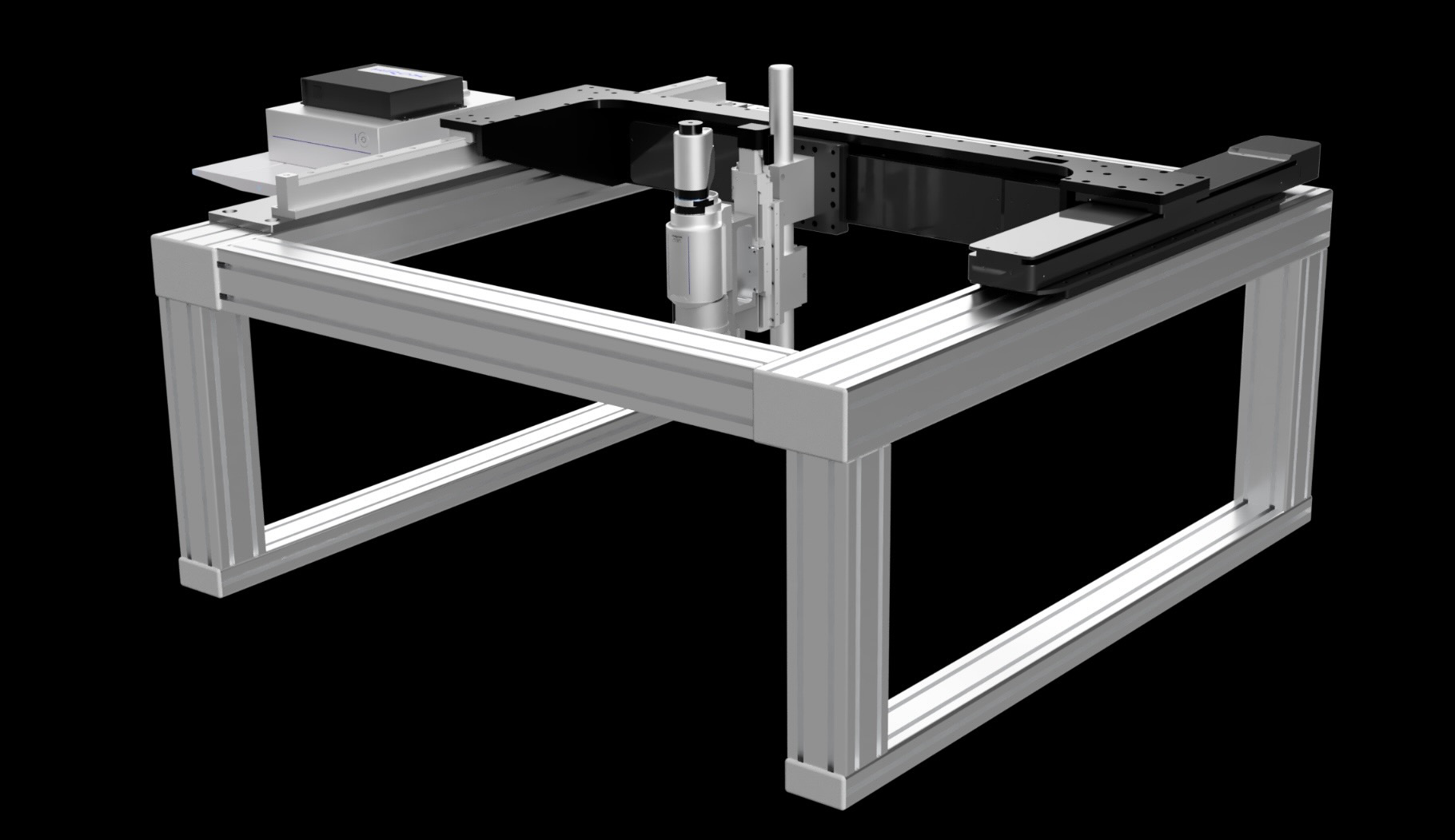

ST-B500 | Bridge Stand

Special-Made stand setup to inspect samples from above

Motorized X axis (top): 500 mm
Motorized Y axis (bottom): 500 mm
Step size: 0,2 micrometer
Base plate: 1200 x 900 x 58 mm
Sample plate: 600 x 600 mm
Length inside the bridge: no limit
NPS smallest height: 1 micrometer
Maximum load on Y axis: 15 kg
Maximum XY moving speed: 10 mm / sec
Compatible with FB-E motorized and manual Z axis block as well as “Z-only” axis

Also available with XY axes: 100, 300, 800, 1000 & 1500 mm

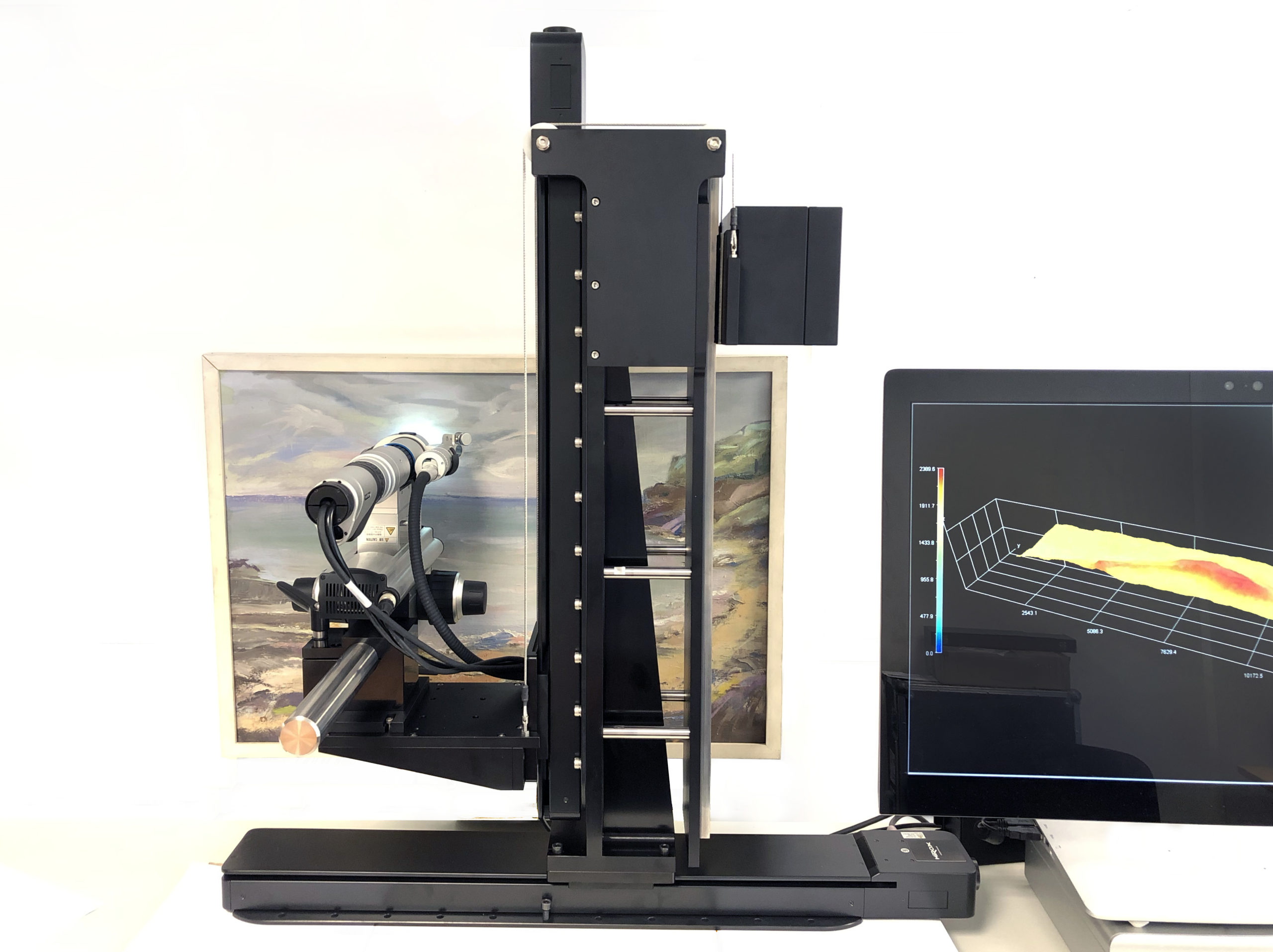

ST-T500 | Horizontal T-Stand

Special made horizontal motorized stand for inspection of vertical objects with counterweight:

Motorized X axis (bottom): 500 mm
Motorized Y axis (moving up and down): 500 mm
Step size: 0,2 micrometer
Maximum XY moving speed: 10 mm / sec
Compatible with FB-E motorized and manual Z-axis block as well as “Z-only axis”
Motorized Z axis: up to 80 mm

Also available with XY axes: 100, 200, 300, 1000 & 1500 mm

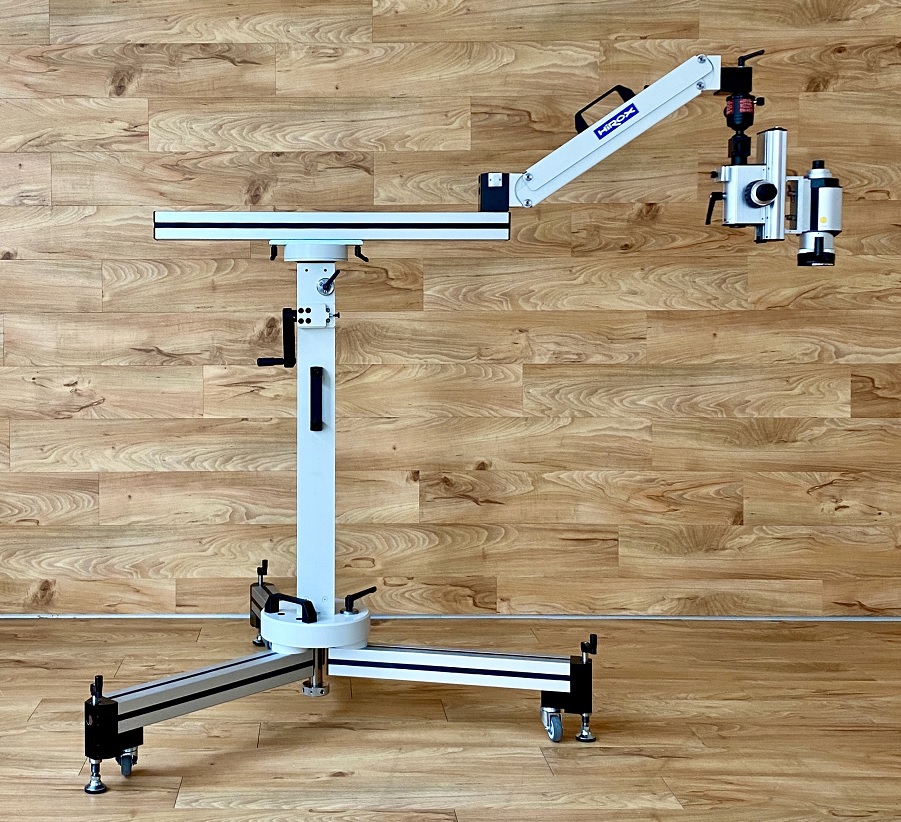

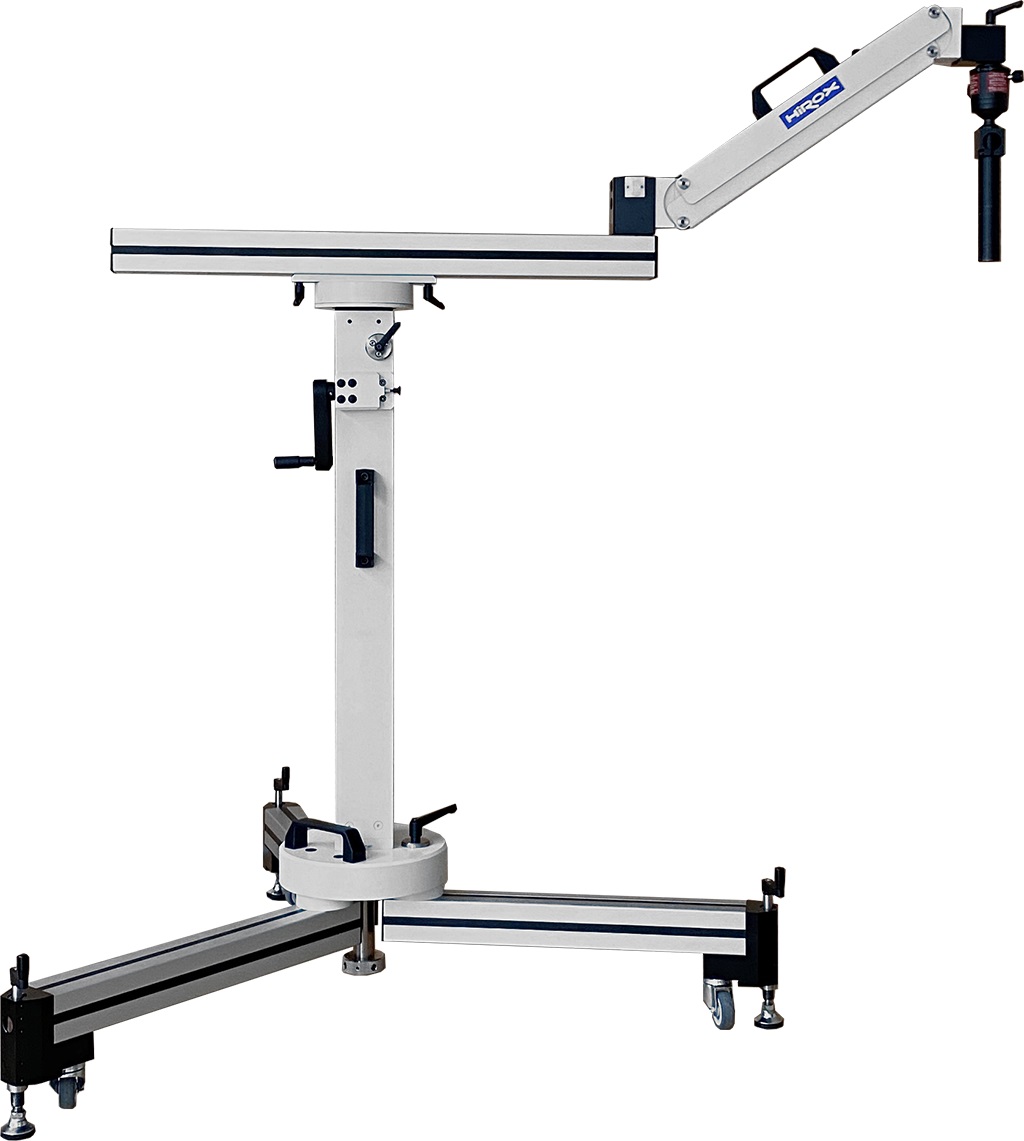

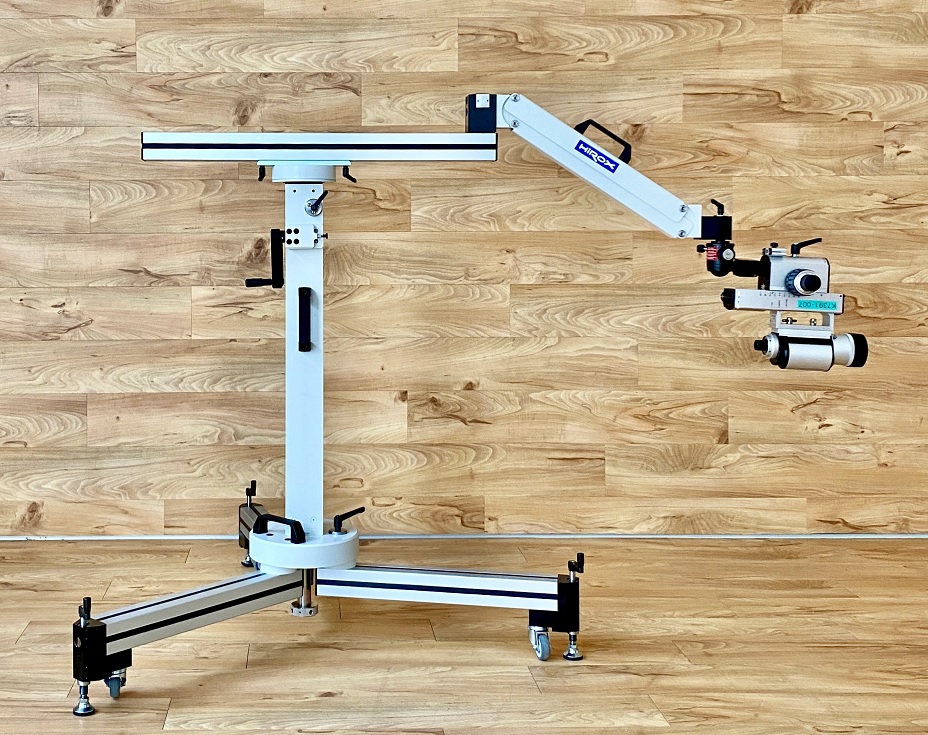

ST-TS-W | Flexible Arm Stand

High-precision large Stand with adjustable horizontal Arm.

On wheels or attached to a table, it facilitates observations of large-size objects: L-shape or rotational ball-head extension for 360° free angle lens position. Adjustable columns for any alternative work. Carrying-case and more options.

Time to assemble/disassemble = one minute!

Working area: from 650 mm to 2000 mm
Max distance from Pillar center: 1500 mm
Weight: 50 kg

ST-P500 | Portable Motorized Stand

New high precision stand with an XYZ-axis designed for motorized & manual observation over large areas


Customizable depending on required height and area specification.

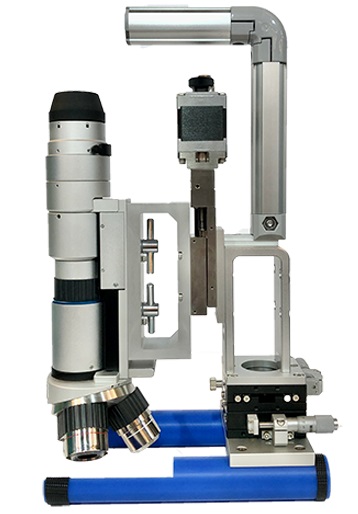

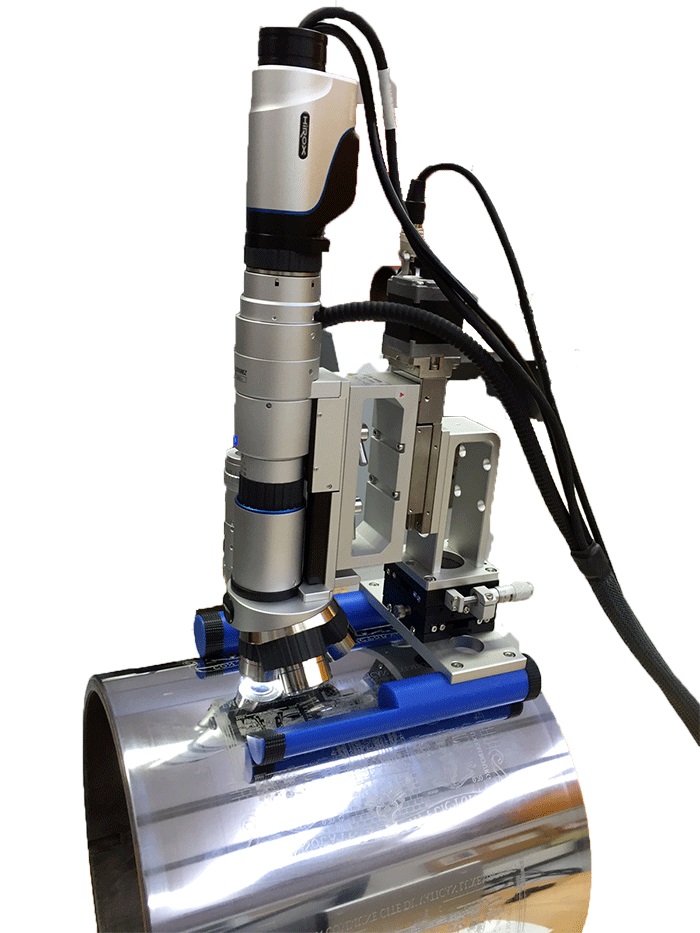

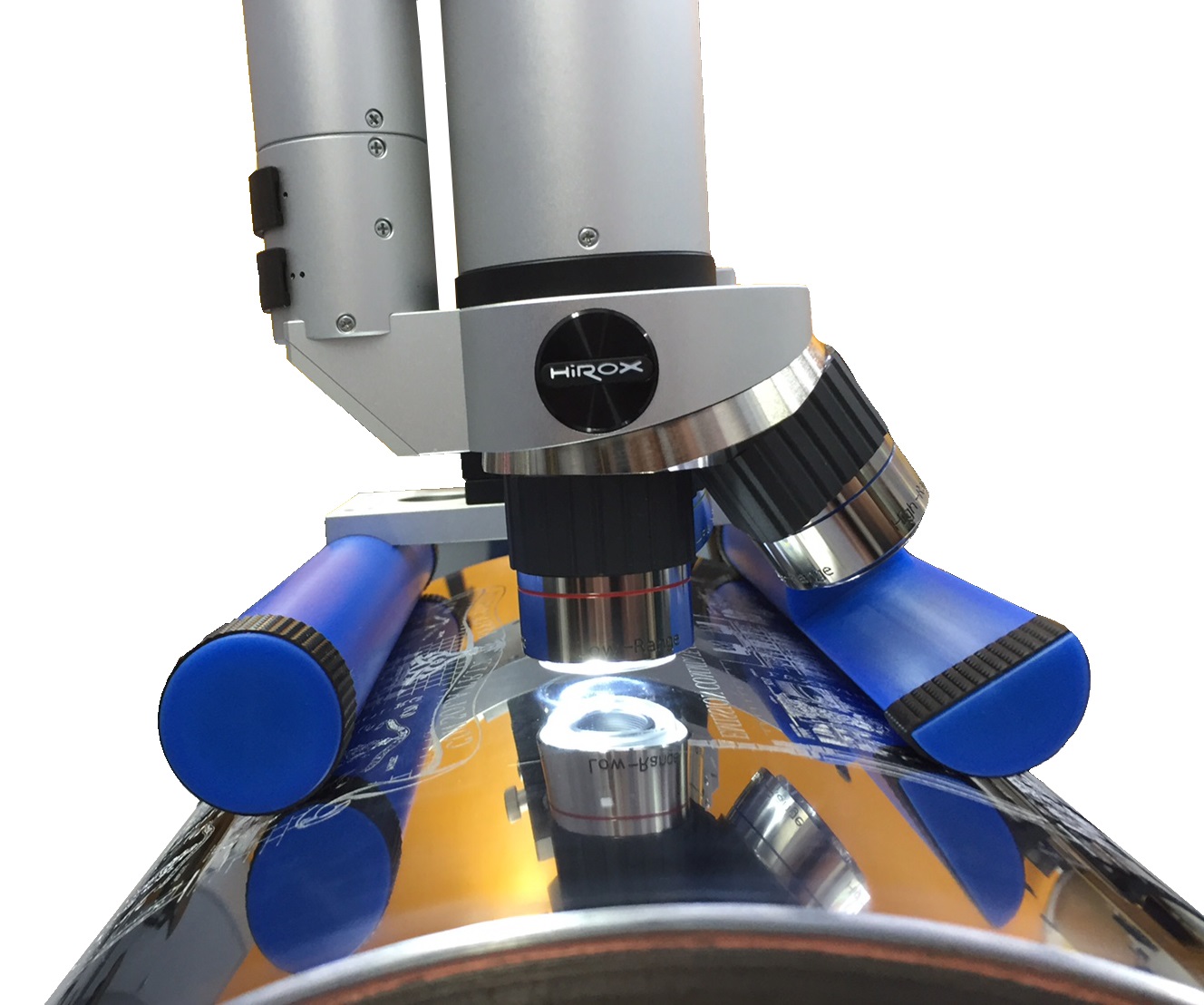

Auto Z-02 | Contact Stand

New high precision stand with Z-axis specially designed for contact observation

Motorized movements: 30mm with 0.05µm (50nm) steps

Including manual micrometric XY movements

Stand Customization

We are constantly developing new solutions to answer the most demanding tasks.

Therefore, we would be happy to design and customize a stand for your project!

Please don’t hesitate to ask us any questions and we will do our best to find the ideal solution for you!
