20x up to 160x Magnification (6x to 320x with adapters)
Patented Rotary Head Compatible
Compact Body with a wide range of adapters

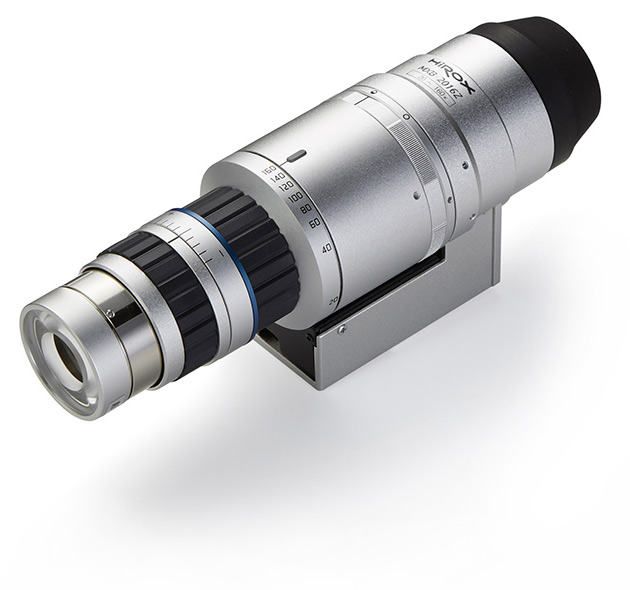

The high-performance zoom lens has a compact body, provides a high resolution image, and offers a large optical depth-of-field with the ability to utilize an even larger digital depth-of-field.
The lens can be handheld and accommodates numerous applications through the attachment of 13 various adapters covering a magnification range of 6x-320x.
Standard
Low Mag
High Mag
Magnification
20-160x
6-48x
40-320x
Working Distance
44 mm
132 mm
20 mm
Horizontal View
15.4-2.0 mm
50.8-6.35 mm
7.62-0.95 mm
Depth of Field
13.3-0.25 mm
170.45-4.20 mm
3.02-0.10 mm
ACS Function
Yes
Yes
Yes
Adapters
360° Rotary Head Adapter, Hirox exclusivity! 360° rotaty inspection without contact or sample moving. 45 Degree angle view. Lighting Method: Dark field vertical lighting Working Distance: 11 mm Weight: 237g
Included with the lens: Contact adapter Lighting Method: Dark field vertical lighting Working Distance: 0 mm Weight: 17g
Included with the lens: Non contact adapter Lighting Method: Dark field vertical lighting Working Distance: 44 mm Weight: 8g
Included with the lens: Variable lighting adapter Lighting Method: Variable angle lighting Working Distance: 0 mm Weight: 49g
Diffusing adapter for 3D Rotary Head adapter Lighting Method: Diffuse Lighting Working distance: 11mm Weight: 2g
High magnification (2x) adapter Magnification: 40x to 320x Lighting Method: Dark field vertical lighting Working Distance: 20 mm Weight: 9g
High Magnification (2x) Variable Lighting Adapter Magnification: 40x to 320x Lighting Method: Variable angle lighting Working Distance: 1 mm Weight: 53g
Low magnification (0,3x) adapter Magnification: 6x to 48x Lighting Method: Dark field vertical lighting Working distance: 135 mm Weight: 29g
Polarizing adapter (with sliding filter) Lighting Method: Polarizing Filter Lighting Working Distance: 31 mm Weight: 22g
L-Angled Side View Adapter (Small/ Large) Lighting Method: Dark field vertical lighting Working Distance: 10.5 to 15.5 mm Mirror size: 0x35mm (S), 19x35mm (L) Weight: 36g(S), 41g(L)
Diffuse lighting adapter Lighting Method: Diffuse Lighting Working Distance: 0.4 mm Weight: 26g
Special made diffuse lighting adapter with variable working distance Lighting Method: Diffuse Lighting Working Distance: variable Weight: 26g
Co-axial Lighting Adapter Polished Side Inspection Lighting Method: Co-axial lighting Working Distance: 10.5 mm Weight: 253g Fiber Light Guide is in option
