Hirox USA

Next Generation 3D Digital Microscope
All-in-One Unit

KH-8700

KH-8700 Catalog Download
  • Observation
  • Measurement
  • Capture and Records
  • Specifications

Observation

Auto Focus

A key advantage in the line of Hirox digital microscopy is the ability to easily and quickly auto focus an image. Auto focusing an image at a rapid rate is due to our 0.05 micron pulse motorized z axis. All one has to do is double click the desired location on the monitor and the high speed software does the rest by automatically selecting the optimal focus point.

pagetop

Full High Definition LCD Monitor

21.5” Full HD LCD monitor (1920 x 1080) is integrated into the KH-8700. It is one of the top grade high intensity pixel reproduction monitors displaying 16.77 million colors, a contrast ratio of 1000:1, and brightness of 300 cd/m2. Monitor size has increased 80%, with a new aspect ratio of 9:16 instead of 3:4. The new aspect ratio allows our new software platform main menu and other function keys not to overlap with live images.

All-in-focus Image

All-in-focus Image

A key advantage in the line of Hirox digital microscopy is the ability to easily and quickly autos focus an image. Auto focusing an image at a rapid rate is due to our 0.05 micron pulse motorized z axis. All one has to do is double click the desired location on the monitor and the high speed software does the rest by automatically selecting the optimal focus point.

pagetop

High Intensity LED Light Source

The new high intensity LED light source provides 5700K temperature, which closely portrays daylight color temperature (5500K) to re-produce true sample color images as well as full illumination immediately with no warm up time. The light source has an average lifetime of 30,000 hours, equivalent to over 10 years of usage (Note: 8 hours/day x 30 days x 12 months x 10 years).In addition, the new light source is environment friendly with 1/4 electronic consumption, less heat and UV.

High Dynamic Range

High Dynamic Range, an essential observation technology based on a Hirox original algorithm, reproduces a dynamic shutter range as a visual image. This function provides results through blending both the low and high boundaries of an image to give a clear and balanced result.

pagetop

24 Frame / Second with High Resolution Camera

The new high-speed “Genex” Graphics Processor allows Hirox’s CCD camera to capture 24 fps with the continuous high-quality resolution of 1200 x 1600 pixels. This provides a great on-screen performance and live image operation is as smooth as the naked eye. Here, it is not necessary to change to a lower resolution setup, all of the functions work with 1200 x 1600 pixel resolutions (UXGA).

Measurement

ACS

The Auto Calibration Select (ACS) sensor automatically applies the proper lens settings with each magnification or lens change, completely eliminating the need to choose proper calibration values. When a lens / mag is changed, the ACS feature also adjusts the z-axis speed / steps coinciding with the preferred lens’ camera setup.

pagetop

Real Time 2D Measurement

Auto Count  ( Binarization )
Measurements including length, area, and surface area can be taken in various styles. Using only mouse operation, the object on the monitor can be measured in real-time and all measurement results automatically calculate to standard statistical data.
Auto Count  ( RGB )
Advanced software provides the end user the ability to auto-count particles, detect particle size and ratio. This feature can be performed on a binarized or RGB color image.

Real Time 3D Measurement

3D Profile
The integrated stepping motor allows for faster, smoother, and more accurate scanning with 0.05 um/pulse precision and 30 mm of automated travel. It only takes 4 seconds to display a high quality 3D model with capturing 10 image planes.Quantify 3D data by associating the profile graph with the image display area. Intuitively measure 3D height information as well as have the capability to extract angle and radius data.
Roughness Measurement ( Ra, Rz, Rzjis )
Roughness Measurement( Ra, Rz, Rzjis )
Engineering advances in the KH-8700’s software includes profile line Roughness measurements giving the end user more quantitative data than before.

pagetop

Capture and Record

Real Time 2D & 3D Tiling

It is a constant challenge for optical microscopes to capture with a high optical resolution and a wide field of view simultaneously. This new process does not require a specified position to match tile to tile. The image will automatically begin tiling seamlessly in real-time just by moving the XY stage to increase the Field of View up to 110 times. An optional Auto XY stage is also available for Auto 2D and 3D tiling functions.

Image Library

Cover all storage access through the Explorer tab. Organize files by selecting the detail setup. Be able to edit, connect to a network, burn files to a CD/DVD, and print any file directly from the Library.

pagetop

Time Lapse / Movie Record

The KH-8700 can automatically take a sequence of frames at a specified interval to record changes over a set duration. To help reduce energy consumption, the LED lamp is only turned on when necessary.

Report

Save time by quickly transferring image files into the Easy Report Writer in order to make presentations. Several different templates are available or customize templates to taste.

Specifications

Main Control Unit (Basic Functions)

Camera Image sensor  1/1.8-inch, 2.11 Mega-pixel CCD Sensor
Scanning Mode Progressive Scan
Total Pixels 2.11 Mega-pixels 1688 (H) x 1248 (V)
Effective Pixels 2.01 Mega-pixels 1688 (H) x 1236 (V)
Visual Pixels 1600 (H) x 1200 (V)
Frame Rate 24 Frame at 1600 x 1200 Pixel Resolution
High Dynamic Range (HDR) 32 Bit Resolution Process and 16 Bit Resolution Output
Electronic Shutter AUTO (1/24 ~1/100000)
MANUAL (8, 4, 2, 1, 1/2, 1/4, 1/8, 1/24, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/15000
Supercharge Shutter Preference Setup (17 ~ 1/100000)
Gain Auto (0dB ~ 6dB), Manual (0, 3, 6, 9, 12dB), OFF
White balance Auto (One Push), Manual (R, B)
Camera Cable Length 2 Meter (Option: up to 10 meter extension)
Back-Focus Adjustment NOT Required
Image Format Exif-JPEG (compressed), Exif-TFF (non-compressed), BMP (non-compressed)
Maximum Pixel Resolution 58 Mega-pixels - 8600 (H) x 6600 (V) (Non-Tiled Image)
Maximum Pixel Size 225 Mega-pixels - 15000 Pixels (H) x 15000 Pixels (V) (Tiling Image)
Movie Format AVI (non-compressed), WMV (compressed)
Monitor Display Size Full HD LCD 21.5" Monitor
Panel Size 18.75" (H) x 10.56" (V) - 476.2 (H) x 268.11 (V) mm
Pixel Pitch 0.01" (H) x 0.01" (V) - 0.248 (H) x 0.248 (V) mm
Number of Pixels 1920 (H) x 1080 (V)
Display Color Approx. 16,770,000 colors
Brightness 300cd/m2 (typical)
Contrast Ratio 1000:1 (typ)
Viewing Angle 170° (Horizontal), 170° (Vertical)
Light Source Lamp High Intensity LED
Lamp Life 30,000 hours (Average)
Color Temperature 5700K
Image output Output method Analog RGB/ DISPLAY PORT (1920 X 1080Pixel or more)
Output Video Analog RGB / Display Port (Requires higher than 1920x1080 Pixels)
Step Motor Z-Axis Step Motor Controller Port (5 Phase Motors Driver Integrated)
Rotary Head DC Motor Controller Port
Input ACS Terminal ACS Sensor Connection Port
Keyboard and Mouse Support 2.0 USB Keyboards and Mouse
External Remote Foot Switch (Freeze / Capture Image) Port
Remote Device Remote Device (CT-R01)
Extra Controller RS-232C Connector Port
Interface LAN 10BASE-T/100BASE-TX/1000BASE-T
USB2.0 6 Ports (2 x Side, 4 x Back)
Storage Capability Hard Disk Drive 500 GB Hard Drive (300 GB of Recording Capacity)
Approx. 1,500,000 Images (compressed) to Approx. 50,000 Images (not compressed)
Other Drives USB 2.0 external CD-R/RW, DVD±R/+R, DVD/±RW/-RAM, HDD
Power Supply Rated Voltage AC100~240V, 50/60Hz
Power Consumption 195W
Environmental
Resistance
Ambient Temperature 5° C to 40°C (no freezing or condensation)
Storage Temperature '-10° C to 50° C (no freezing or condensation)
Relative Humidity 25 to 85% RH (no condensation)
Atmosphere Corrosive Gas Prohibited
Weight Main Unit Approx. 14 kg
Camera Approx. 1 kg
Remote Device (CT-R01) Approx. 0.5 kg
Dimensions Main Unit 20.67" (W) x 17.42" (H) x 8.70" (D) - 525 (W) x 442.5 (H) x 221 (D) mm

Optional Motorized Z-Axis Specifications

FB-E Stage Stroke Distance 30 mm (1.18") Motor / 85 mm (3.34") Manual
Resolution 0.05 um (0.002 Mil) / pulse - 5 Phases Motor
Repeatability 0.5 um (0.23 Mil)
Weight 1 kg

Numerous Functions

Observation Settings Camera Preview Function (displays automatically adjusted image previews)
Auto Camera Settings / Camera Image Settings
Mode Function (save camera settings)
Auto Calibration Select (ACS) (zoom mag is automatically relayed to the system)
Edge Enhancement Function
Hue Correction and Chroma Correction Setting including Chroma ON/OFF
Gamma Correction / Contrast Settings including Live Anti-Halation Mode
Camera Shake Correction
Brightness Level
Light Source ON/OFF and adjustable lighting intensity
White Balance (Auto / Manual)

Observation Tool an

Enhanced Digital Processing

Quick Focus (Quick extended depth composition)
Auto Focus (Point Focus) - Just Double Click
HDR (High Dynamic Range) Function / HDR Preview Function
Anti-Halation Function / Anti-Halation Preview Function
Focus Control (Auto Z-axis controller) / Focus Indicator
Rotary Head Control (Visual 3D image controller)
Real-Time Digital Zoom
High-Resolution Image Function
Grid Settings (Various Functions are available)
Image Adjustment (contrast, edge enhancement, noise removal, binarizing)
Custom Tool Bar and Quick Function Key on Remote Device
2D Measurement
Function
Distance, Angle, Radius, Diameter, Area, etc.
High Resolution Measurement
Auto Calibration (Auto / Manual) / Calibration Data Protection / Custom Lens List Setting
Automatic Measurement (Auto-Count, Auto-Area, Auto-Edge Detection)
Scale Display (Metric/Inch)
Statistic Data Output from Measurement Result
CSV output (Measurement Result)
Image Data Parameter
3D Measurement
Function
Depth Composition: AMF3D merge function: Auto Multi-focus 3D Merge function
Depth Composition: APS function: Auto-Positioning function
3D Multi-Focus (Quick 3D, Semi-Auto, Full-Auto, Manual) / 3D Model Preview Function
HDR and Anti-Halation 3D Model / 3D Model Preview Function
3D Display (Original Color / Wireframe / Pseudo Color Display)
3D Model Illumination Simulation Function
3D Profile Measurement (Height, Length, Angle, Radius etc.) on 3D Model Image or 2D Image
3D Profile Roughness Measurement
3D Volume and Area Measurement
3D Image Height Point Measurement
3D Image Map CSV Output (Import to Various 3D application Software)
3D Model Level Correction / Noise Filter and Removal
Tiling 2D Tiling (Up to 15000 x 15000 pixels)
3D Tiling (Up to 10000 x 10000 pixels)
Recording Capture Still Image (1600×1200, 1440×1080, 1200×960, 1024×768, 800×600, 640×480)
High-Resolution Image (8600×6600, 6400×3600, 3200×2400, 2400×1800)
Movie - 1200x1600 (15FPS), 800x600 (24FPS) including Time Lapse (Timer Recording)
Cropping Image
Library Browser
Explorer
Display Split Monitor (Horizontal, Vertical, 4 window splitting) - All Functions are accessible
Turning Over, ±90 Rotation
Comments / Annotation
Grid, Scale, Date, Comments, Annotation, Image Information
Utility Easy Report Function and Export with Excel Format
System / User Settings / Network Settings
Password Protection (Calibration / User setup)
Language Setting (English, Japanese )
Help (Pop-up User Guide / Manual) / Version Information
Printer / Compatible with a Foot Switch
Additional Software for PC Free 3D Image File Viewing Software

pagetop

TOLL-FREE : (866) HIROX-US
Tel: (201)342-2600, Fax: (201)342-7322

contact us

HIROX-USA, inc. : 100 Commerce Way, Hackensack, NJ 07601

©2013 Hirox-USA, inc.All Rights Reserved.

Superior Quality Observation
PC-Model Unit

KH-1300

KH-1300 Catalog Download
  • Specification
  • Software
  • Overview

The KH-1300 digital microscope is revolutionary in that it achieves both the highest transfer speeds in its class and high-quality images at the same time. An original CCD camera was developed exclusively to create the highest quality images. As a result, high-resolution images can be transferred quickly allowing video to be observed on PC screens. High quality imaging with cost effectiveness in mind.

Overview

Expandable

The firewire 800 interface with the PC provides the IIDC camera control feature as well as fast transmission of high resolution images. The KH-1300 provides users with a new observation environment and an ability to build systems that do away with the previously accepted notions of what a microscope can achieve.

Control from PC 1
Direct Access enables the user to control the KH-1300 wired directly into your PC.
Control from PC 2
Remote Access enables the user to operate the KH-1300 through a network or LAN connection.

pagetop

High Image Repeatability with built in “User Mode”

Metal Structure
Roughness Measurement( Ra, Rz, Rzjis )
Protein Structure
Roughness Measurement( Ra, Rz, Rzjis )

The "user mode" allows you easily select the desired picture style. 12 settings are provided for specific applications. This answers the need for more detailed expression, such as clear reproduction of sample color, greater image depth, and image repeatability. Compensation settings for changes in image brightness, contrast settings containing color information, and enhancement settings ranging from basic to advance. User mode settings based on video technology, unique to a digital microscope manufacturer allows for more versatility in sample observation.

Light Source

Select the Light Source that best meets your Specific Requirements.

Metal-Halide Lamp  ( KH-1300M )
Color reproduction can be extremely important in thoroughly capturing the details of a given sample. Our metal-halide lamp has a very high color temperature which allows accurate details and color to be easily captured and observed. On top of that, the service life of our metal-halide lamp lasts six times longer than conventional lamps. These two features make our metal-halide lamp the optimum light source for state-of-the-art digital microscopes.
Halogen Lamp  ( KH-1300H )
With our Halogen Lamp, you will never see a decrease in light intensity or color temperature. This is because evaporated tungsten does not stick to the tube wall and cause the glass bulb to darken which means the bulb will always be functioning at peak performance. This light source has an impressive life span and service record and is adaptable to a variety of environments including production sites and manufacturing plants. It’s low cost and long life-span make it one of our best light sources.

pagetop

Software

Measurement

The coordinate settings function enables image analysis in the work coordinate system. In addition, many useful measurement tools are implemented such as 2 Point Distance, Parallel Lines Distance, Perpendicular Distance, Polygon Perimeter, Section, Parallel Lines, Point Coordinates, 3 Points Angle, 4 Points Angle, 2 Points Circle, Rectangle, Ellipse, Polygon and 3 Points Arc. Random shapes in the image are also recognizable by the following tools: Auto Line, Auto Arc, Auto Selection Region, Best Fit Line and Best Fit Circle.

Multi-Focus (All-In-Focus) Image

The software has the necessary functions for image acquisition by the digital microscope. By simply moving the focal plane, the software enables the user to create an all-in-focus image.

pagetop

Specifications

Specifications

shooting elemennts 1/1.8-model CCD
valid pixels 1628(H)x1236(V)
frame tate 24f/s(analog RGB output)
white balance MANUAL(R, B Gain), One push AUTO
shutter 8, 4, 2, 1, 1/2, 1/4, 1/8, 1/24,1/60, 1/100, 1/250, 1/500, 1/1000,1/2000, 1/4000, 1/8000,1/15000, AUTO
strage functions shutter=effective8, 4, 2, 1, 1/2, 1/4, 1/8
gain AGC : 0dB - 12dB
Fixed : 0dB, 3dB, 6dB, 9dB, 12dB
RG=ablack Brightness
gamma ON/OFF
gamma characters(common to RGB), ttrimming(independent og RGB)
user mode 12stages(basic image setup values)
color bar Exists(full field bar)
freeze functions Analog RGB
power output interface Analog RGB/EIEEE1394.b
operating environment Temperature: 5 - 40degrees, humidity: FLess than60%
storing environment Temperature: 5 - 40degrees, humidity: FLess than60%
power source AC90 ~ 120V
size, weight 330(w)x130(H)x305(D)xMain body 3.8kg

pagetop

TOLL-FREE : (866) HIROX-US
Tel: (201)342-2600, Fax: (201)342-7322

contact us

HIROX-USA, inc. : 100 Commerce Way, Hackensack, NJ 07601

©2013 Hirox-USA, inc.All Rights Reserved.

Dual Illumination with a Triple Object

Dual Illumination with a Triple Objective Turret Zoom Lens

35x to 2500x

MXG-2500REZ

A new lens design provides macro to micro views. Turning the turret allows the operator to access each objective lens and an optical zoom range of over 70 times the minimum magnification. Lens par-focality allows for sustained focus across the entire magnification spectrum from 35x – 2500x. The ACS is integrated and recognizes the objective lens positioning as well as the zoom level. As always, all calibration information will be displayed and stored, eliminating any potential human error.

Specifications
Model MXG-2500 REZ
Lighting Method Co-Axial, Dark Field and Mixed
Range Low-Range Mid-Range High-Range
Magnification 35-250x 140x-1000x 350x-2500x
Working Distance 10 mm
Horizontal View 8.71 - 1.22 mm 2.18 - 0.31 mm 0.87 - 0.12 mm
mm / inch 0.34" - 0.05" 0.09" - 0.01" 0.03" - 47.2 mil
ACS Option Yes

Hanheld Capable High Performance

Low-Range High Performance Zoom Lens

20x to 160x

MXG-2016Z

This zoom lens has a compact body that can be hand held and can accommodate numerous applications by attaching various adapters. Its exclusive adapter is a screw type that allows for smooth detachment. Use of this adapter covers the magnification range of 6 to 320x.

Specifications
Model MX - 2016Z / MXG-2016Z
Adapter Normal Low High
Magnification 20 - 160x 6 - 48x 40 - 320x
mm / inch Working Distance 44 / 1.73'' 132 / 5.2'' 20 / 0.79''
Horizontal View 15.4 - 2.0 / 0.61 - 0.08'' 50.8 - 6.35 / 2 - 0.25" 7.62 - 0.95 / 0.3 - 0.04"
Depth of Field* 13.3 - 0.25 / 0.52 - 0.01'' 170.45 - 4.20 / 6.71 - 0.17" 3.02 - 0.10 / 0.12 - 0.04"
ACS Option Yes

* This is optical depth of field, digital depth of field is more than 34 mm

Universal type of Mid-Range Rotary

Mid-Range Rotary Zoom Lens

50x to 400x

MXG-5040RZ(SZ)

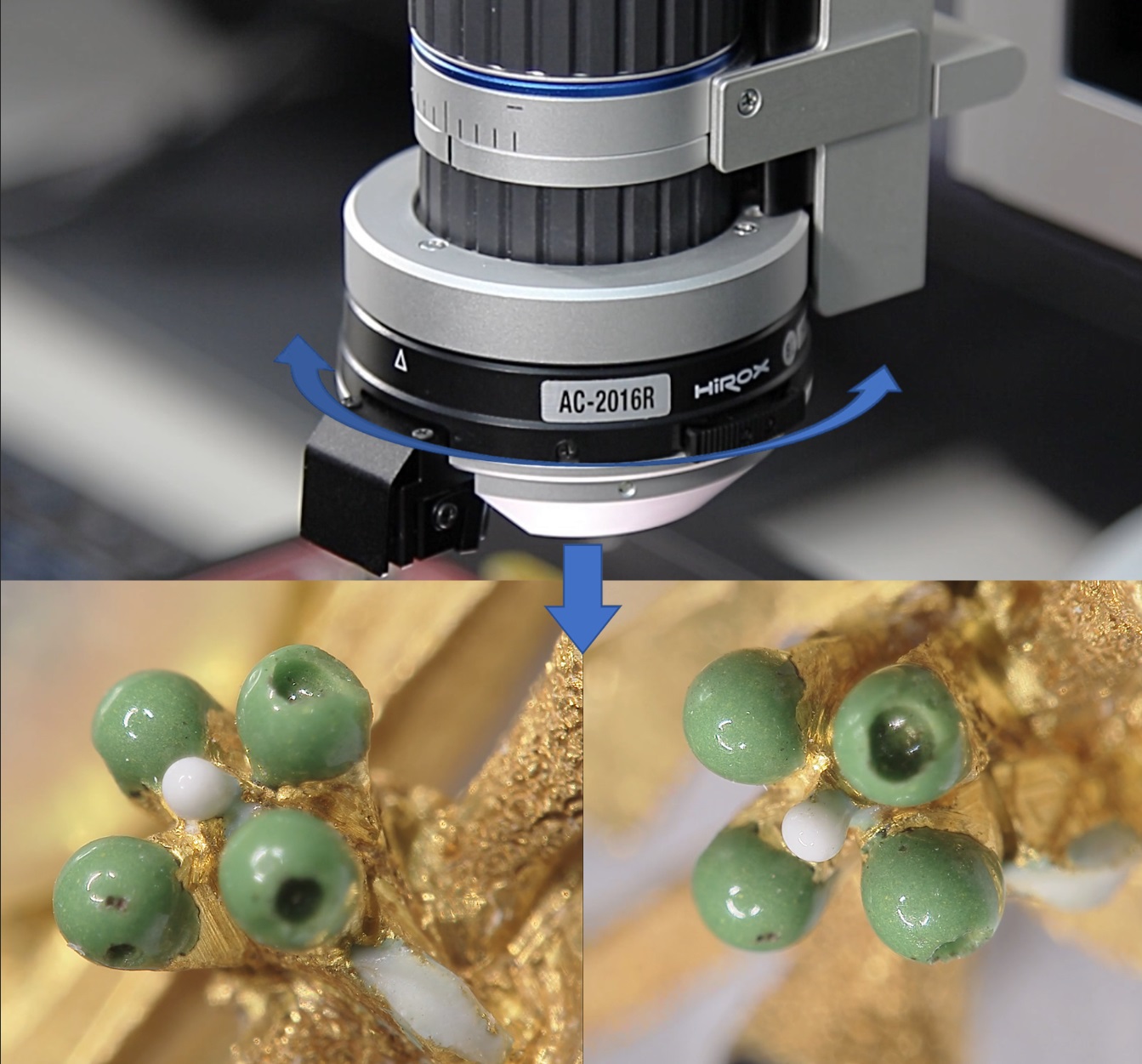

This high-performance zoom lens is equipped with a wide selection of optical adapters. Attaching the rotary head adapter achieves 360°3D image detection. The various exclusive adapters snap-on, allowing one-touch replacement, which means improved efficiency. These adapters expand observation from 20 to 800x magnification range

Specifications
Model MX - 5040RZ (SZ) / MXG-5040RZ (SZ)
Adapter Normal Low High
Magnification 50 - 400x 20 - 160x 100 - 800x
mm / inch Working Distance 54 / 2.13'' (63 / 2.48'') 80 / 3.15'' (80 / 3.15'') 20 / 0.79'' (29 / 1.14'')
Horizontal View 6.1 - 0.78 / 0.24 - 0.03'' 15.4 - 2.0 / 0.61 - 0.08'' 3.05 - 0.39 / 0.12" - 0.02"
Depth of Field* 2.7 - 0.08 / 0.11" - 3.15 mil 16.81 - 0.58 / 0.66 - 0.02" 0.68 - 0.02 / 0.03" - 0.79 mil
ACS Option Yes

*This is optical depth of field, digital depth of field is more than 34 mm

High Resolution 10x

High Resolution 10x Zoom Lens

35x to 7000x

MXG-10C

This co-axial vertical lighting zoom lens has the option of six interchangeable objective lenses. The objective lenses cover a magnification range of 35 to 7000x. A directional lighting adapter is provided for co-axial vertical lighting to achieve intricate optical observation. This lens incorporates a proprietary optical design for high expandability

Specifications
Model MX - 10C / MXG-10C
Adapter OL - 35 OL - 70 II OL - 140 OL - 140 II OL - 350 II OL - 700II
Magnification 35 - 350x 70 - 700x 140 - 1400x 140 - 1400x 350 - 3500x 700 - 7000x
mm / inch Working Distance 34 / 1.34'' 21 / 0.83'' 30.5 / 1.20'' 12 / 0.47'' 10.6 / 0.42'' 3.4 / 0.13''
Horizontal View 9.83 - 1.05 4.42 - 0.47 2.46 - 0.26 2.21 - 0.23 880 - 90 um 440 - 40 um
Depth of Field* 0.39 - 0.04'' 0.17 - 0.02'' 0.10 - 0.01'' 0.09 - 0.01'' 30 - 3.54 mil 20 - 1.57 mil
ACS Option Yes

* This is optical depth of field, digital depth of field is more than 34 mm

Marco Zoom Lens

MX(G)-MACRO VI / A High Performance Macro Zoom Lens

0x to 50x

MX(G)-MACRO VI

This macro zoom lens covers the 0 to 50x magnification range. The lens incorporates a proprietary design that enables use as a macro lens in the infinity to 5x range or use as a zoom lens in the 5x to 50x range by operating a MACRO switch. It also has integrated lighting to enable image capture under diverse environments

Specifications
Model MX - MACROZ VI / MXG - MACROZ VI
Magnification ∞ - 5x 5 - 50x
View (mm / inch) ∞ - 61 / ∞ - 2.4" 61 - 6.1 / 2.4 - 0.24"
Working Distance ∞ - 90 / ∞ - 3.54" 90 / 3.55"
ACS Option N/A Yes

Macro Zoom Lens

0x to 50x

MX-MACRO IV

A magnification range of 0 to 50x can be covered by altering the working distance of this macro lens. This lens demonstrates outstanding work efficiency and supports a wide field-of-view with a simple design. You can also attach a ring light (NR-405-M4) for dark field lighting

Specifications
Model MX - MACROZ IV
Magnification 0 - 50x
mm / inch Horizontal View ∞ - 6.1 / 0.24''
Working Distance ∞ - 21.44 / 0.84''
ACS Option N/A

Ultra Low Distortion and High Resolution Zoom Lens

0x to 20x

MX-020Z-US

Hirox-USA original lens. With the aperture function varying lighting, and the magnification correlating with working distance, this macro lens expands on available options for inspection and high resolution image capture

Specifications
Model MX - 020Z-US
Magnification 0 - 20x
mm / inch Horizontal View ∞ - 15.4 / 0.61''
Working Distance ∞ - 19 / 0.75''
ACS Option N/A

Others

BGA Exterior Observation Lens

100x to 180x

MX-BGAZ II

This BGA lens allows ball joints to be observed non-destructively. Also, a 3D optical rotary ring enables 3D observation. This lens incorporates special hardware, such as a prism tip with lighting and a cushion mechanism, to ensure comfortable observation.

Specifications
Prism chip structure Soft spring structure for protecting substrates
Prism adaptation width 0.9mm
Observation angle 90 degrees or higher
llumination methods Optical multi illumination
magnification 100 - 180x power *1
Operational distance 0.9 - 8.0mm *2
Weight 695g

Straw-scope Lens

125 to 275 mm length

MX-STZ

This straw-scope lens allows observation of congested points such as those inside of machinery. The sleeve is designed with independent optical and lighting systems to achieve outstanding resolution impossible for existing optical fiber scopes. The sleeve is highly water-proof; making is usable in severe environments such as the inside of engines

Specifications
Model MX - STZ 25-128 40-120 40-245 58-135 58-275
AD-STL
mm / inch Outer Diameter 2.8 / 0.11'' 4.0 / 0.16'' 4.0 / 0.16'' 4.0 / 0.16'' 5.8 / 0.23''
Effective Length 125 / 4.92'' 120 / 4.27'' 245 / 9.65'' 135 / 5.31'' 275 / 10.83''
Direct View
View Angle 40°
Adapter View Angle 90°
Adapter Diameter 3.05 / 0.12'' 4.5 / 0.18'' 4.5 / 0.18'' 6.3 / 0.25'' 6.3 / 0.25''
TOLL-FREE : (866) HIROX-US
Tel: (201)342-2600, Fax: (201)342-7322

contact us

HIROX-USA, inc. : 100 Commerce Way, Hackensack, NJ 07601

©2013 Hirox-USA, inc.All Rights Reserved.

  • Straight Stand
  • Angle Stand
  • Other Stand
  • Auto XY Stage

Straight Stand

Video and Images

Angle Stand

ST-GA / FB-E / XY-G2

Angle Stand


Hirox Precision Free Angle Stand Free to choose 180 degrees of inclination and 360 degrees of stage rotation for target observation up to 7000x. Combined with the option of the Electronic Focus Block for 3D observation and height measurements; the ST-GA is undoubtedly Hirox's most versatile stand to date.
ST-GA / FB-E / XY-G2

Other Stand

Line UP

The standard stand has the flexibility to go from simple observation to unique, custom observation.

Economy Stand
SPEC
Base Size 11'' x 13'' - 17'' x 20''
Pole φ 20mm
Pole Length 16'' - 36''


Duel Boom Arm Stand
SPEC
Base Size 17'' x 25''
Pole φ 1.5''
Pole Length 16'' - 36''
Push Table Size and Travel 15.5'' x 15.5'' / 13.78'' x 10.63''
11.5'' x 9.25'' / 7.87'' x 3.93'

Auto XY Stage

Auto XY Stage


Hirox-USA original design auto XY stage for high precision free angle / straight stand. With the axis controller integrated in the auto stage, a lowest XY movement distance of 0.4 um, 40x40 mm working range in a compact body size, and 3kg maximum load capacity, this Hirox-USA design is built for ease and efficiency.
Specifications
Auto XY Stage
Motor 5 Phase Stepping Motor(1µ / pulse)
Resolution (Micro Step) 0.1µ = 1/20
Working Range X = 50mm , Y = 50mm
Stage Maximum Speed 10mm / sec
Dimension ( W / D/ H ) 250mm / 223mm / 62.5mm (Excluding Connector)
Weight 3Kg
Load Capacity 3Kg
Material Alminium
Click Observation
XY Stage can be moved around by double clicking or dragging the mouse in the direction of travel on screen. Double-click can be combined with auto-centering as well as auto-focus function simultaneously.
Extended Measurements
Extends 2D measurements beyond the field of view on a live image without the need for tiling. Makes low mag measurements at higher magnifications.
TOLL-FREE : (866) HIROX-US
Tel: (201)342-2600, Fax: (201)342-7322

contact us

HIROX-USA, inc. : 100 Commerce Way, Hackensack, NJ 07601

©2013 Hirox-USA, inc.All Rights Reserved.

Explanation
With optics designed for primary use with a camera, a digital microscope combines the best of a traditional optical microscope, the ergonomics of no longer needing an eyepiece, and the technology of a computer; incorporating a light source, optics, PC, and camera all in one system. Hirox digital microscopes span the range of visible light from a macro image to the limits of white light at 7000x.

Comparison Chart of Different Type of Microscope

TOLL-FREE : (866) HIROX-US
Tel: (201)342-2600, Fax: (201)342-7322

contact us

HIROX-USA, inc. : 100 Commerce Way, Hackensack, NJ 07601

©2013 Hirox-USA, inc.All Rights Reserved.

TOLL-FREE : (866) HIROX-US
Tel: (201)342-2600, Fax: (201)342-7322

contact us

HIROX-USA, inc. : 100 Commerce Way, Hackensack, NJ 07601

©2013 Hirox-USA, inc.All Rights Reserved.

TOLL-FREE : (866) HIROX-US
Tel: (201)342-2600, Fax: (201)342-7322

contact us

HIROX-USA, inc. : 100 Commerce Way, Hackensack, NJ 07601

©2013 Hirox-USA, inc.All Rights Reserved.

Downloads

pagetop

Solution Guide

  • Surface Mount Technology
    Solution Guide
    Surface Mount Technology Catalog

    Contact

pagetop

TOLL-FREE : (866) HIROX-US
Tel: (201)342-2600, Fax: (201)342-7322

contact us

HIROX-USA, inc. : 100 Commerce Way, Hackensack, NJ 07601

©2013 Hirox-USA, inc.All Rights Reserved.

Overview / Concept

The Pioneer of 3D Digital Microscopes
Hirox is more than just a Digital Microscope company, we make the impossible possible. Our Digital Microscope system is a combined tool that is able to do Observation, Measurement, Recording, and see things “as they are.” Since we started our business almost 30 years ago as pioneer of digital microscope, our main purpose hasn’t changed. “Make it possible to observe anything that our users are looking for.” From grayscale to color images, we keep building the best environment and equipment for our users.
Never Stops Improving
The environment of observation is always changing and advancing. Hirox is seeking and improving our technology at the same speed. Digital Microscopes used to be a tool for specialists, but our technology made it easy to use even if you don’t have skill or knowledge about Digital Microscopes. You can capture images, save, and create reports on one Digital Microscope system at your desired level. The improvement on Digital Microscope technology also helps develop other systems and methods to do research such as quality control and product improvement. Digital Microscope systems expand opportunities and open up many more unknown studies.
Easy, Safe, and Stress-free Work Environment
Hirox is always seeking to improve our Digital Microscope system to meet and exceed our user’s expectations. An easy, safe, and stress-free work environment is very obvious and basic, but that is fundamental to create a productive work place. From surface measurement to 3D measurement, creating a procedure for an entire process is effortless with no intense training. At the same time, letting the system do all the measurements could reduce the number of human-errors, and save a lot of time. This whole process constructs an easy, safe and stress-free environment for our Digital Microscope users.
Total Solution for Quality Management in a New Era
(Delivering a total solution for production technology, design technology, quality management, cause analysis, failure analysis, research improvement, and much more.) The demand for nondestructive testing is increasing in the current research scene. To make better products, and to be more efficient with the process, you need to have a very high skill inspection system and structure that can keep up with that development and change. Hirox understands that, to date, multi-tasking at a timely and efficient manner is required in any kind of industry. Hirox systems let you do observation and inspection by anyone, anywhere, and at any time without any complications.

Product History

Product History Image

World Network

USA Offices
Head Office
Location 100 Commerce Way, Hackensack, NJ 07601
TOLL-FREE (866) HIROX-US
TEL (201)342-2600
FAX (201)342-7322
E-mail info@hirox-usa.com
URL http://www.hirox-usa.com
California Office
Location 29400 Kohoutek Way, Suite#180 Union City, CA 94587
TEL (510)489-2500
FAX (510)489-2550
Overseas Offices
Hirox Co Ltd.(WorldHeadquarters)
Location 2-15-17 Koenji Minami Suginami-Ku, Tokyo 166-0003 Japan
TEL 03-3311-9911
FAX 03-3311-7722
URL http://www.hirox.com
Hirox China Co., Ltd.
Location Room 809, 8th Floor, Fortune International Plaza,No.43 Guo-Quan Road,Shanghai 200433, China.
TEL +86-21-6564-7772
FAX +86-21-3362-5017
E-mail info@hirox.com.cn
URL http://www.hirox.com.cn
Hirox Korea Co., Ltd.
Location #719 Metrokhan Bldg, 1115 Bisan-dong, Dongan-ku, Anyang-city, Gyeonggi-do, 431-058, Korea
TEL +82-31-385-1130
FAX +82-31-385-9730
E-mail inquiry@hiroxkorea.com
URL http://www.hiroxkorea.com
HIROX ASIA Ltd.
Location Suite 1213,12/F, Ocean Center, 5 Canton Road, Tsimshatsui, Kowloon, Hong Kong
TEL +852 8198-9679
FAX +852 3015-7657
E-mail info@hirox-asia.com
URL http://www.hirox-asia.com
HIROX EUROPE
Location Jyfel, 300 RN 6 Le Bois des Côtes, Bâtiment A F-69760 Limonest, France
TEL +33 426 25 03 40
FAX +33 426 23 68 13
E-mail info@hirox-europe.com
URL http://www.hirox-europe.com
TOLL-FREE : (866) HIROX-US
Tel: (201)342-2600, Fax: (201)342-7322

contact us

HIROX-USA, inc. : 100 Commerce Way, Hackensack, NJ 07601

©2013 Hirox-USA, inc.All Rights Reserved.

Contact Us

Hirox-USA Direct Sales Offices
Head Office
Location 100 Commerce Way, Hackensack, NJ 07601
TOLL-FREE (866) HIROX-US
TEL (201)342-2600
FAX (201)342-7322
E-mail info@hirox-usa.com
URL http://www.hirox-usa.com
California Office
Location 29400 Kohoutek Way, Suite#180 Union City, CA 94587
TEL (510)489-2500
FAX (510)489-2550
TOLL-FREE : (866) HIROX-US
Tel: (201)342-2600, Fax: (201)342-7322

contact us

HIROX-USA, inc. : 100 Commerce Way, Hackensack, NJ 07601

©2013 Hirox-USA, inc.All Rights Reserved.
